Product introduction:
Normally, we call ball mill stone as flint pebble or silica pebble, which are used as grinding media. And our ball mill stone are from the silica mine, after grinding in ball mill over 6~8hours, become round, and won't be broken easily. With high density and low abrasion, our customers use ball mill stone in many fields, such as ceramics, glass industry, zirconium silicate, white cement, etc.
Technical indicator:
Chemical composition:
SiO2 ≥99.31%
Al2O3 ≤0.36%
Fe2O3 ≤0.018%
CaO: 0.09%
MgO: 0.04%
Physical property:
Volume density ≥2.66~2.68g/cm3
Hardness: Around 8 mohs
Porosity ≤0.38%
Actual abrasion rate ≤1.35
Color: Grey and White
Size: 1-3cm,2-4cm,3-5cm,5-7cm,4-6cm,6-8cm,8-10cm,10-12cm,12-15cm
Product features:
Superior grinding efficiency: due to the high hardness, high density and low wear loss;
No pollution of the grinded material: SiO2 content>=99%;
Controlled size and shape, different sizes can be customized and adapted to various ball mills;
High cleanliness: In the prodocution progess, use water to clean;
Not easilier broken compared with natural sea or river pebbles, due to Gaoteng pebbles are ground in the ball mill for 6~8 hours.
Comparison report:
Under the same test condition, our Japanese customer do the test comparing our flint pebbles with the French flint pebbles about abrasion degree. The test report shows the difference from our Dalian pebbles & French pebbles:
Density: 2.68g/cm3 of Dalian pebbles higher than 2.62g/cm3 of french pebbles.
Wear loss: wear loss of Dalian pebbles is 40g, less than 50g of french pebbles.
Our advantages and services:
Dalian Gaoteng was established in 2000, has rich export experience, cooperate with over 170 customers, often export to Japan, Southeast Asia, Europe, the middle east…
Due to customers from different industries could have different requirement, we can help you to choose suitable product.
Besides, we have own logistics company, can offer the best service and favorable price to you.
Packing details:
Normal packing method: Ton bags, One ton bag with one pallet, Two ton bags with one pallet, In bulk(Same sequence as below pictures);
Packing size: Normally, for bags, the size will be 100cm X 100cm X 100cm; for pallets, will be 100cm X 100cm;
Weight of package: 1000-1300 kg per bag, 20 packages per 20'FCL, so 25-27tons per 20'FCL;
Mark and Label: We can customized the mark and label as customers' demands.
Production process:
How do we produce the silex pebbles?
Unlike other ball mill stone, Gaoteng ball mill stone is mined from silica mountains, rather than collested directly from rivers or the sea.

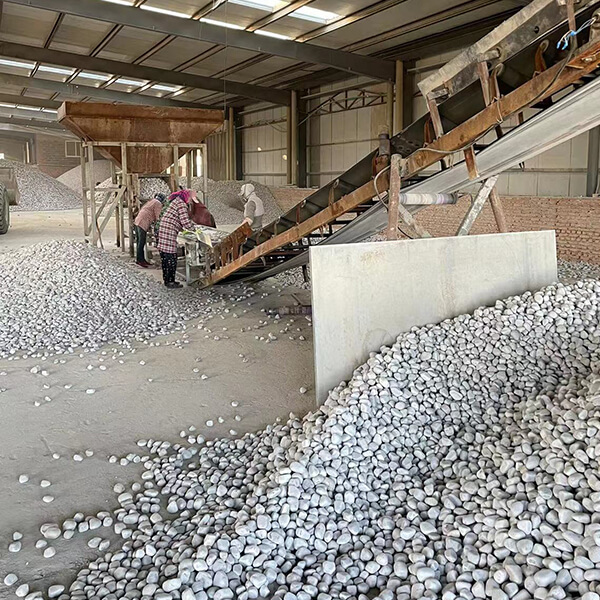

After collect the silica raw materials from the mountain, the artisans will sort the raw rocks first. Then break the large ones to the smaller ones, that the preformed ball mill stones are finished. Next, artisans put the preformed stone into ball mills, after grinding for 6~8hours, the stone become round. Then directly into the screening machine, screen the different sizes separately. And in order to ensure the customers receive clean ball mill stones, Gaoteng also clean the ball mill stones with high-pressure water gun. In order to ensure the consistency of the size, Gaoteng also arrange the artisans for secondary screening by hand, to achieve quality control. Finally, pack the ball mill stones into bags and transport them to the warehouse or to the customers directly.
Factory:
Gaoteng has engaged in ceramic grinding media industry since 2000, has rich experience in providing professional advice and the most suitable products to customers. Help customers to solve the production issues, put ourselves in the customers' shoes.
Gaoteng also can provide one-stop servicefor customers, with Gaoteng's sister company (Dalian Gaoteng Logistics company). Can provide customers with the fastest speed, favorable price and professional service.
Product introduction:
Normally, we call ball mill stone as flint pebble or silica pebble, which are used as grinding media. And our ball mill stone are from the silica mine, after grinding in ball mill over 6~8hours, become round, and won't be broken easily. With high density and low abrasion, our customers use ball mill stone in many fields, such as ceramics, glass industry, zirconium silicate, white cement, etc.
Technical indicator:
Chemical composition:
SiO2 ≥99.31%
Al2O3 ≤0.36%
Fe2O3 ≤0.018%
CaO: 0.09%
MgO: 0.04%
Physical property:
Volume density ≥2.66~2.68g/cm3
Hardness: Around 8 mohs
Porosity ≤0.38%
Actual abrasion rate ≤1.35
Color: Grey and White
Size: 1-3cm,2-4cm,3-5cm,5-7cm,4-6cm,6-8cm,8-10cm,10-12cm,12-15cm
Product features:
Superior grinding efficiency: due to the high hardness, high density and low wear loss;
No pollution of the grinded material: SiO2 content>=99%;
Controlled size and shape, different sizes can be customized and adapted to various ball mills;
High cleanliness: In the prodocution progess, use water to clean;
Not easilier broken compared with natural sea or river pebbles, due to Gaoteng pebbles are ground in the ball mill for 6~8 hours.
Comparison report:
Under the same test condition, our Japanese customer do the test comparing our flint pebbles with the French flint pebbles about abrasion degree. The test report shows the difference from our Dalian pebbles & French pebbles:
Density: 2.68g/cm3 of Dalian pebbles higher than 2.62g/cm3 of french pebbles.
Wear loss: wear loss of Dalian pebbles is 40g, less than 50g of french pebbles.
Our advantages and services:
Dalian Gaoteng was established in 2000, has rich export experience, cooperate with over 170 customers, often export to Japan, Southeast Asia, Europe, the middle east…
Due to customers from different industries could have different requirement, we can help you to choose suitable product.
Besides, we have own logistics company, can offer the best service and favorable price to you.
Packing details:
Normal packing method: Ton bags, One ton bag with one pallet, Two ton bags with one pallet, In bulk(Same sequence as below pictures);
Packing size: Normally, for bags, the size will be 100cm X 100cm X 100cm; for pallets, will be 100cm X 100cm;
Weight of package: 1000-1300 kg per bag, 20 packages per 20'FCL, so 25-27tons per 20'FCL;
Mark and Label: We can customized the mark and label as customers' demands.
Production process:
How do we produce the silex pebbles?
Unlike other ball mill stone, Gaoteng ball mill stone is mined from silica mountains, rather than collested directly from rivers or the sea.
After collect the silica raw materials from the mountain, the artisans will sort the raw rocks first. Then break the large ones to the smaller ones, that the preformed ball mill stones are finished. Next, artisans put the preformed stone into ball mills, after grinding for 6~8hours, the stone become round. Then directly into the screening machine, screen the different sizes separately. And in order to ensure the customers receive clean ball mill stones, Gaoteng also clean the ball mill stones with high-pressure water gun. In order to ensure the consistency of the size, Gaoteng also arrange the artisans for secondary screening by hand, to achieve quality control. Finally, pack the ball mill stones into bags and transport them to the warehouse or to the customers directly.
Factory:
Gaoteng has engaged in ceramic grinding media industry since 2000, has rich experience in providing professional advice and the most suitable products to customers. Help customers to solve the production issues, put ourselves in the customers' shoes.
Gaoteng also can provide one-stop servicefor customers, with Gaoteng's sister company (Dalian Gaoteng Logistics company). Can provide customers with the fastest speed, favorable price and professional service.
With the development of business, Gaoteng has gradually become the global procurement center of customers, global sourcing & one-stop shipping service can be provided, we are finding more possibilities for future development, create more value to be a reliable partner and friend of you
