Brief introduction & Application:
Alumina Ceramic Ball Mill Liner is a ceramic material made of high-purity aluminum oxide material, which has excellent wear and corrosion resistance. 92% alumina ceramic liner and plate is widely used in various industries, especially in situations where wear resistance, high temperature resistance, and corrosion resistance are required.
Aluminum oxide ceramic lining plate has high melting point, high hardness, and excellent wear resistance.
Its production process includes using Al2O3 as the main raw material, rare metal oxides as solvents, and high-temperature calcination at 1700 ℃ to form a special corundum ceramic.
Technical data:
Item | Result |
Al2O3 | 92 % |
Hardness | 9 Mohs |
Density | 3.60 g/cm3 |
Sizes:
Brick Type | Length(mm) | Width1(mm) | Width2(mm) | Thickness(mm) |
Rectangle Brick | 150 | 50 | 50 | 40,50,60,70,90 |
Trapezoidal Brick | 150 | 45 | 50 | 40,50,60,70,90 |
Half Rectangular Brick | 75 | 50 | 50 | 40,50,60,70,90 |
Half Trapezoidal Brick | 75 | 45 | 50 | 40,50,60,70,90 |
Flake Brick | 150 | 25 | 25 | 40,50,60,70,90 |
Packing:
Package Details | Type | carton with pallet |
Pallet size | 1m x 1m x 0.1m (pallet size) | |
Weight | 1000-1300kg per pallet 25-27 tons load in 1X 20'FCL 20 packages/20'FCL | |
Delivery time | Usually within two weeks after confirm the order. | |
Processing:
The production process of alumina lining bricks mainly includes the preparation of raw materials, forming, sintering, and other links. In the process of preparing raw materials, it is necessary to select high-purity alumina powder and add some additives in a certain proportion to mix into a uniform mortar. Then, the mortar is made into ceramic bodies of different sizes and shapes as required, and sintered at high temperatures to gradually harden them, forming alumina lining bricks with stable chemical and physical properties.

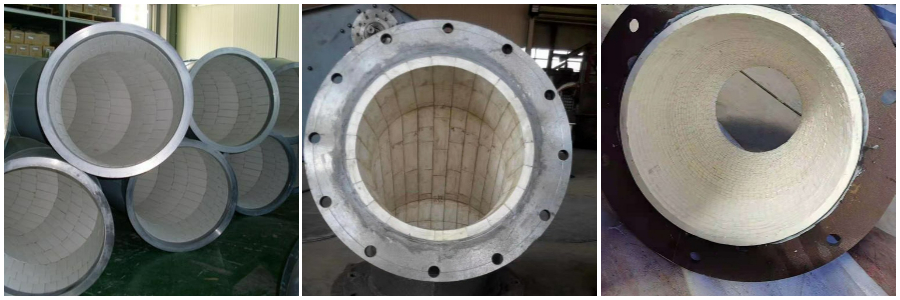

Installation 92% alumina lining bricks
Product feature details:
Alumina ceramic lining has many excellent characteristics, including:
High temperature resistance: Aluminum oxide has a high melting point and high-temperature resistance, which can maintain stability in high-temperature environments and is not easy to melt and oxidize.
Wear resistance: Alumina ceramic lining bricks have high hardness and wear resistance, can resist wear, impact, and chemical erosion, and are suitable for various harsh working environments.
Corrosion resistance: Alumina ceramic lining bricks can withstand the erosion of chemical substances such as acid and alkali, and can be used for a long time in corrosive media to maintain the integrity and performance of the material.
Rigidity and strength: Alumina ceramic materials have high rigidity and strength, and can withstand high loads and impacts.
Chemical stability: Alumina ceramic materials have good chemical stability and can maintain stable performance in various chemical environments.
Non toxicity: Aluminum oxide ceramic materials are inherently non-toxic and can be used in fields such as food processing.
Why choose us?
Customized service: Match suitable sizes and quantity of bricks according to the ball mill size, bricks for feeding inlet and outlet can be customized.
Installation service: Over 30 years' experience workers can support installation service.
Transport service: We have own logistics company, provide favorable, safer & faster shipping service to you.
