Silicon Carbide Plate

Silicon carbide plate use superior quality SIC as main raw material, special chemical materials as agglomerant, and use advanced hydraulic vibration molding equipment for production. SIC plate widely used in Metallurgy, Chemical, Enamel, Electrical porcelain, Daily porcelain, Construction ceramics, Glass, Copper factory, etc..
SiC content: >=90%;
Density: 2.75g/cm3;
Thermal Expansion at 1000℃: 0.42%-0.48%
Availability:
Quantity:

PDF Export

Brief introduction & Application:

Silicon carbide plates are mainly used in high-temperature industrial equipment, such as shuttle kilns, tunnel kilns, box kilns and electric kilns, with good thermal conductivity; low energy consumption; smooth surface; no dross, it will not pollute the end product.

There will be no bending phenomenon after long-term use. And the high content of silicon carbide can prolong the service life and significantly reduce the cost of customers.


Technical data:

Silicon Carbide Plate / Refractory Silicon Carbide For Ceramic Industry

Item

Unit

Index

SIC Chemical Composition

%

≥90

Bulk density

g/cm3

2.75

Max Service temp

1550

Refractoricess

SK

≥39

Refractoriness under load (2kg/cm2, T2℃)

1750

Modulus of rupture at room temp

Kg/cm2

≥500

Modulus of rupture at 1400℃

Kg/cm2

≥550

Compressive strength

Kg/cm2

≥1300

Thermal expansion at 1000℃

%

0.42-0.48

Apparent Porosity

%

7-8

Thermal conductivity at 1000℃

Kcal/m.hr.℃

13.5-14.5


Size

Thickness:8-25mm, can be customized as customers requirements.

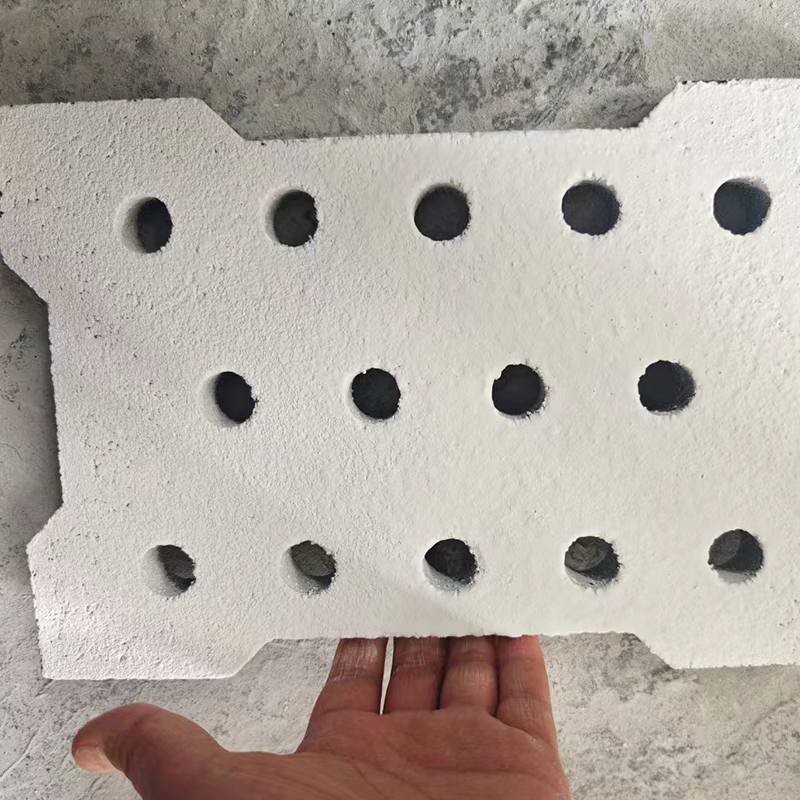

display of sic plate


Product Feature:

  • High temperature stability: Silicon Carbide Plate has excellent high temperature stability and oxidation resistance, can work stably for a long time in a high temperature environment, and is not easy to oxidize and decompose.

  • High hardness: Refractory SIC plate has high hardness & excellent wear resistance,not easy to be worn and damaged.

  • Corrosion resistance: It has excellent corrosion resistance and is not easily corroded by acids, alkalis, salts and other chemical substances.

  • High strength: Silicon Carbide Plate has high strength and rigidity, and can withstand large external forces and loads.

  • Good thermal conductivity: It has excellent thermal conductivity, can transfer heat quickly, and is suitable for high-temperature heating occasions.

packing of sic plates
