Product Overview:

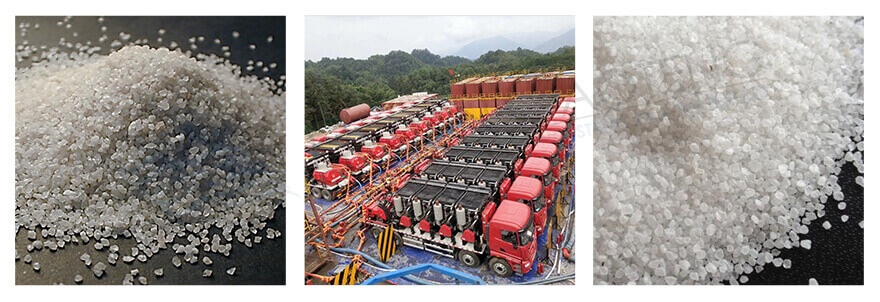

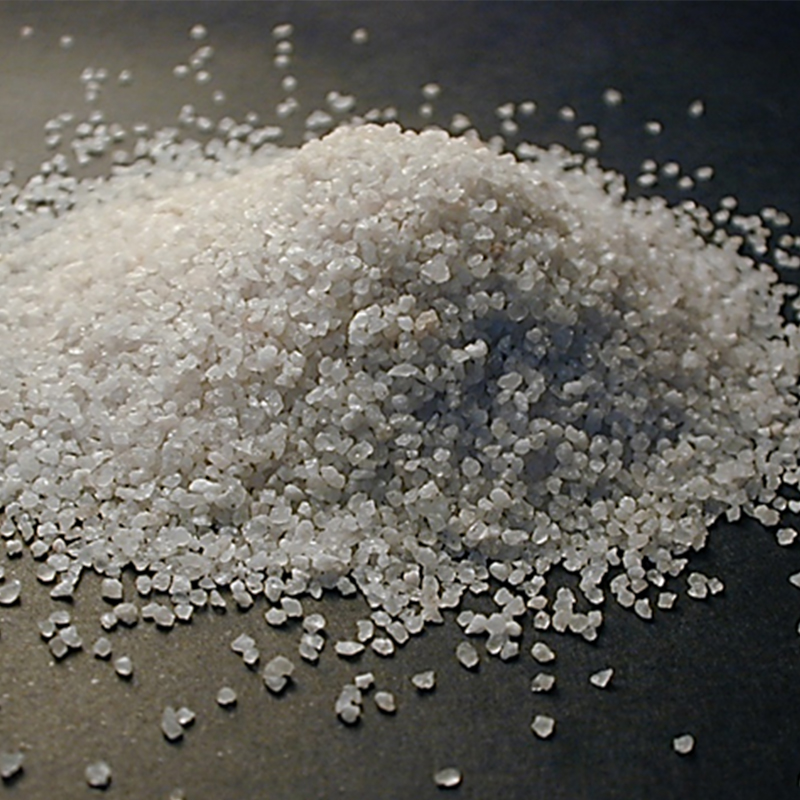

Petroleum fracturing sand is a special quartz sand that is specifically used in the extraction of oil and natural gas. Its main function is to prevent the closure of formation fractures and ensure the continuous flow of oil and gas. It is one of the indispensable materials in the production process of oil and gas
Main Characteristics:
High Purity: SiO2>=99.0~99.5%, low impurity, high strength, and stable chemical

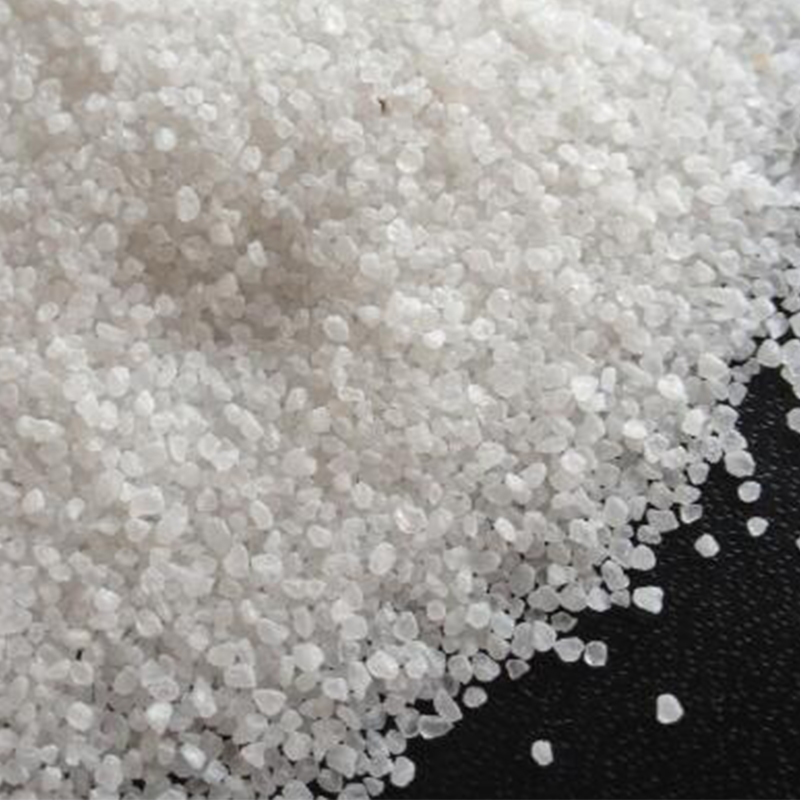

High Roundness and Sphericity: Roundness/sphericity>=0.6, nearly to the grain shape, which will uniform the strength under high pressure, and won't break easily.
Strict Particle Size Control on Particle Sizes: Uniform particle size ensures consistent flow and stable fracture support.
Low Clay & Low Dust: Through water washing, hydraulic classification, and powder removal processes. So we can control the content of dust, and make the mud content ≤1%.
Typical Technical Data:
| Category | Specification Range |
| SiO₂ Content | ≥ 99.0% – 99.5% |
| Acid Soluble | ≤ 2.0% (Premium ≤ 1.0%) |
| Turbidity | ≤ 250–500 NTU (Premium ≤ 150 NTU) |
| Roundness | ≥ 0.6 (Premium ≥ 0.7) |
| Sphericity | ≥ 0.6 (Premium ≥ 0.7) |
| Crush Resistance | 6K / 8K / 10K |
| Fines / Clay Content | ≤ 0.1% – 0.3% |
| Moisture | ≤ 0.1% – 0.5% |
| Particle Size Distribution | 20–40 / 30–50 / 40–70 / 70–140 Mesh (Other sizes can be customized) |
Why Choose Us:
High purity silica raw material: Select high-quality raw materials from the beginning.
Perfect production process: Multi-stage washing and desliming for ultra-clean sand.
Excellent roundness control: Roundness/sphericity>=0.6
Low breakage rate: Stable performance under 5,000–7,000 psi.
Stabilize production capacity and delivery: The daily production capacity can be over 1,000tons; we have our own logistics company, which can provide the shipping service by bulk vessel and containers.
Customized specifications: The size can be customized according to the clients' requirements; the packing can also be customized according to the customers' demands, with their labels.
Packaging & Delivery:
| Packaging | Net Weight |
| Jumbo Bag | 1000-1350kgs |
| Woven Bag | 20-25kgs |
| Bags With Pallets | 1000-1350kgs |
| Custom Packaging | Available |
Main Applications:

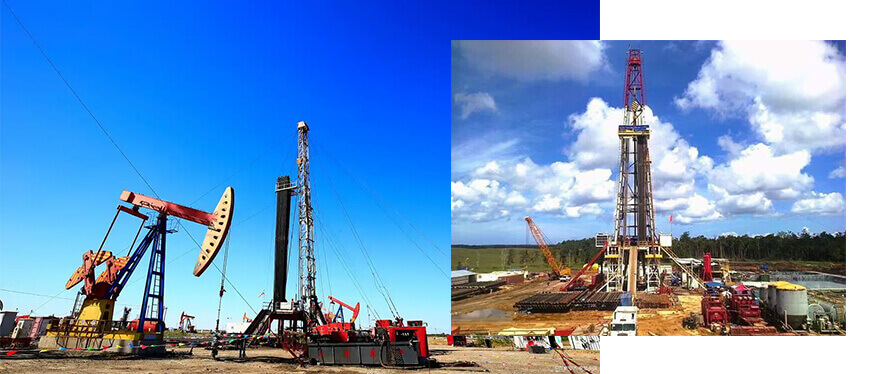

Hydraulic fracturing
Proppant for shale gas, tight oil, deep wells, and high-pressure wells.
Supporting fractures, maintaining the unimpeded flow of oil and gas channels.
