Dry grinding is much more demanding on grinding media than wet grinding.
There is no water in the mill to help remove heat or cushion the contact between the grinding media and the material. The balls are exposed to repeated impact, friction, and temperature changes during operation.
For this reason, choosing grinding media for a dry mill is not simply a matter of looking at alumina content or hardness. Ball size, density, wear resistance, forming method, and internal structure all need to be considered.
Before choosing the grinding media, it is worth looking at how the mill actually operates.
Some of the basic questions are:
What material is being ground?
What is the feed size?
What is the required final particle size?
Is the process continuous or batch?
What is the mill diameter and length?
What grinding media size is being used?
How much impact does the media receive during operation?
Is the mill running at a high temperature?
Ball size is particularly important.
A 20 mm ball and a 50 mm ball do not experience the same conditions inside a mill. A larger ball has a much greater mass, so the impact energy is also higher.
This is one reason why a grinding media that performs well in a small wet mill may not necessarily be the right choice for a large dry mill.
Alumina content, density, and hardness are usually the first specifications buyers compare.
They are certainly important.
Higher density can improve grinding efficiency, while good hardness and wear resistance help reduce media consumption. However, these figures do not tell you how the ball will behave when it is repeatedly subjected to impact.
Two alumina balls can have similar chemical composition and hardness but behave differently in the mill.
The internal structure of the ball matters.
If there are weak areas inside the ball, repeated impact can gradually develop cracks. Once a crack becomes large enough, the ball may peel, split, or break instead of simply wearing down from the surface.
For dry grinding, this difference becomes more noticeable because there is no liquid to absorb part of the impact or help control the temperature.
The manufacturing process has a direct effect on the structure of a grinding ball.
For alumina grinding balls, two common production methods are rolling and isostatic pressing.
Rolled balls are formed by adding material layer by layer until the required diameter is reached.
This process works well for many applications, especially smaller grinding media and wet grinding systems where the operating conditions are relatively moderate.
However, as the ball size increases, maintaining a uniform structure throughout the ball becomes more challenging.
Under demanding dry-grinding conditions, repeated impact and temperature changes can put additional stress on the ball. If there are differences in density or bonding between different areas of the ball, these areas may become more vulnerable to cracking or peeling.
This does not mean that every rolled ball will fail in dry grinding. The actual result depends on the ball size, mill design, material, filling ratio, operating speed and other conditions.
But for large-size media in a demanding dry mill, the forming method deserves careful attention.
Isostatic pressing uses pressure to compact the alumina material more uniformly before sintering.
The result is a dense and more homogeneous structure throughout the ball.
This is one of the main reasons we normally recommend isostatically pressed alumina balls for large-size dry grinding applications.
The advantage is not simply the higher density shown on a test report. A more uniform internal structure can help the ball withstand repeated impact and thermal stress during operation.
For large grinding media such as 40 mm and 50 mm balls, this can be particularly important.
We have seen this difference in an actual application.
Some time ago, we supplied rolled alumina grinding balls to a factory using dry grinding.
The balls were used in the mill and, after a period of operation, severe breakage occurred.
Some of the balls did not simply become smaller through normal surface wear. They broke into plate-like pieces.

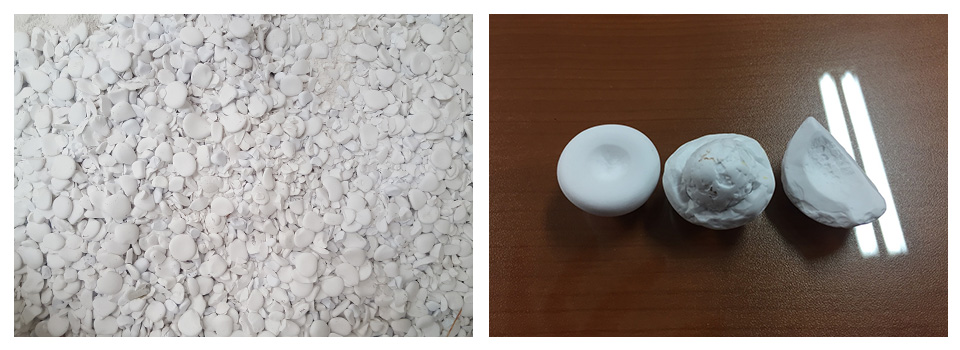

Used rolled alumina grinding balls showing severe breakage after dry grinding.
This case made one point very clear to us: when grinding media is used in a demanding dry-grinding system, it is necessary to look beyond the basic chemical and physical specifications.
A ball may have acceptable alumina content and hardness on paper. That does not automatically mean it has the right structure for the application.
Of course, one case cannot be used to say that all rolled balls are unsuitable for dry grinding. Grinding conditions vary from one mill to another.
But when large balls are exposed to high impact and repeated thermal stress, we believe the forming method should be part of the purchasing decision.
There is another detail that sometimes causes concern when comparing alumina grinding balls.
Depending on the forming process, a belt or cap may be visible on the surface of the ball.
Some customers are concerned that a visible forming step could become a weak point and eventually lead to cracking.
This needs to be looked at from two different aspects.
First, a visible forming mark does not automatically mean that the ball has a structural defect. The actual internal structure and bonding of the ball are more important when evaluating breakage resistance.
Second, if the customer requires a very smooth surface, the physical step can be further processed.

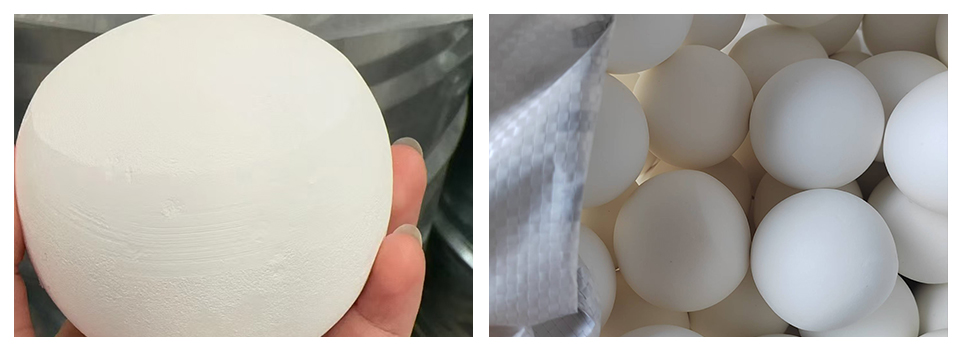

For larger isostatically pressed alumina balls, including 40 mm and 50 mm sizes, we can carry out additional cap trimming and polishing according to the order requirements.
The purpose is to reduce or remove the raised cap area and make the surface more uniform.
This is a finishing process. It does not replace the importance of choosing the right forming method.
In other words, the forming method determines the basic structure of the ball, while trimming and polishing can be used when the customer has additional requirements for the surface condition.
For customers who need to check the surface by hand, this difference is also worth discussing before production. A forming line that is only visible is different from a physical step that can clearly be felt.
When buying grinding media for a dry mill, we recommend asking more than just:
“What is the alumina content?”
It is better to confirm the following points:
1. What is the forming method?
Ask whether the balls are rolled, pressed, or produced by another process.
2. What is the recommended application?
A supplier should be able to explain whether the product is intended for wet grinding, dry grinding, or both.
3. What happens with larger ball sizes?
The manufacturing method that works for 10–20 mm media may not be the best choice for 40–50 mm media.
4. How is the internal structure controlled?
Density, porosity, and uniformity are relevant when the balls are exposed to high impact.
5. Is there a visible belt or cap?
If surface condition is important, ask for actual product photos rather than relying only on a written description.
6. Can the cap be trimmed or polished?
If the customer does not want a noticeable physical step, confirm this before production.
7. Has the product been used in a similar mill?
Actual application experience can be more useful than a standard laboratory specification.
When the grinding media is small and the operating conditions are relatively mild, the difference between different forming methods may not always be obvious.
The situation changes when the media becomes larger, and the mill operates under stronger impact.
For a dry grinding application using 40 mm or 50 mm alumina balls, we would normally pay close attention to:
forming method
internal density uniformity
breakage resistance
thermal shock resistance
wear rate
ball size consistency
surface condition
For this type of application, isostatically pressed alumina balls are generally the safer choice.
If the customer also has strict requirements on the surface, cap trimming and polishing can be added as a finishing step.
The right grinding media is therefore not determined by one number on a specification sheet. The better approach is to match the ball structure and manufacturing method with the actual conditions inside the mill.
That is especially important for large-size grinding media used in dry grinding.
