When grinding high-purity quartz or silica powder, the purity of the raw material is only one part of the process.

The materials inside the ball mill also deserve attention.

The quartz is in constant contact with the grinding media and mill lining. As the mill runs, both can wear. Some of the worn material may eventually become part of the finished powder.

For conventional mineral grinding, this may be acceptable.

For high-purity silica, it may not be.

If the final product has strict limits for Fe, Al, Ca, Mg, or other trace elements, the mill lining should be selected with these limits in mind.

Start with the Impurities You Need to Control

The first question is not:

“Which lining is the hardest?”

It is:

“Which impurities are restricted in my final product?”

This makes a big difference.

If iron is a critical impurity, materials that can contribute iron through wear need to be carefully considered.

If aluminum is tightly controlled, an alumina lining may need closer evaluation because its main component is Al₂O₃.

For a silica product with very low tolerance for non-silica impurities, a silica-based lining becomes an option worth considering.

The actual limits depend on the product. High-purity quartz for different applications does not necessarily have the same impurity requirements.

What Makes a Good Mill Lining for High-Purity Silica?

Once the critical impurities are clear, there are three main things to look at.

Chemical Composition

Start with the lining’s own chemical analysis.

For high-purity silica applications, SiO₂, Fe₂O₃ and Al₂O₃ are usually among the first figures to check. Other elements may also matter depending on the customer’s specification.

A high SiO₂ content is useful, but it should not be the only number on the specification sheet.

The impurity profile matters just as much.

Wear Resistance

Quartz is hard and abrasive. The lining has to withstand repeated impact and friction during grinding.

A lining may have excellent purity but still be a poor choice if it wears too quickly.

Lining life depends on the actual mill conditions, including:

• Feed size

• Final particle size

• Grinding media

• Mill speed

• Grinding time

• Filling rate

• Dry or wet grinding

• Lining thickness

For this reason, wear performance needs to be considered together with chemical purity.

Compatibility with Grinding Media

The lining is only one part of the grinding system.

Grinding media can also contribute wear particles to the product.

For a high-purity silica application, it makes little sense to focus on the lining while ignoring the media material.

If low contamination is important, the lining and grinding media should be evaluated together.

Alumina Lining or Silica Lining?

Both materials are used in industrial grinding.

Alumina lining is popular because it offers high hardness and good wear resistance. It is widely used in ceramic and mineral processing.

But high-purity silica introduces another consideration: aluminum.

If the final powder has a strict Al limit, the possible contribution from alumina wear needs to be considered along with the rest of the grinding system.

A silica-based lining takes a different approach.

Its main component is SiO₂, which is also the main component of quartz and silica powder. If a small amount of lining material enters the product through normal wear, it does not introduce aluminum as the main wear component.

This is one of the main reasons silica lining is worth evaluating for high-purity silica grinding.

It is not a question of whether silica lining is universally better than alumina lining.

The question is which lining fits the impurity requirements of the product.

When Does a High-Purity Silica Lining Make Sense?

A high-purity silica lining is particularly worth considering when:

• The product has a high SiO₂ requirement

• Al contamination needs to be controlled

• Fe contamination needs to be controlled

• The material is quartz or silica-based

• The grinding process is dry or requires strict contamination control

• The final product is fine silica powder or high-purity quartz

It can also be relevant to silica materials used in electronic and semiconductor-related applications, where tighter impurity control may be required.

The lining still needs to meet the mechanical requirements of the mill. High purity cannot replace adequate hardness and wear resistance.

What Should You Ask the Supplier?

Before ordering a new lining, give the supplier enough information to make a proper recommendation.

At minimum:

Mill size
Diameter, length and internal configuration.

Lining requirements
Required thickness and brick or liner dimensions.

Material being ground
Quartz, silica sand, silica flour or another silica-based material.

Grinding media
Material and size.

Grinding method
Dry or wet grinding.

Purity requirements
SiO₂ target and the main impurity limits, especially Fe and Al if they are critical.

This information is much more useful than simply asking for a price per ton of lining.

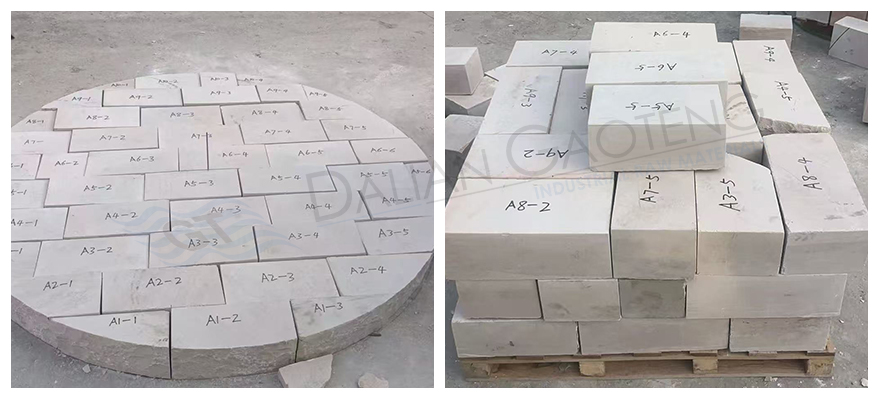

Dalian Gaoteng High-Purity Silica Mill Lining

Dalian Gaoteng supplies high purity silica mill lining for quartz and silica grinding applications.

For high-purity applications, the material is selected with both chemical composition and wear performance in mind.

Depending on the project, we can discuss the lining based on:

• SiO₂ content

• Fe₂O₃ and Al₂O₃ levels

• Density

• Hardness

• Water absorption

• Wear performance

• Lining thickness

• Mill dimensions

The lining can be supplied according to the customer’s mill configuration rather than being limited to one standard size.

For a new quartz or silica grinding project, customers can send the mill dimensions, material purity, and grinding media information. These details allow us to check whether a silex lining is suitable for the process.

The Main Point

There is no single mill lining that works best for every grinding application.

For high-purity silica, however, the selection process can start with a simple question:

Which impurities can the final product not afford to pick up during grinding?

Once that is clear, the choice of lining material becomes much easier.

If aluminum is a critical impurity, a silica-based lining may be a more suitable option than an alumina lining.

If wear resistance is the main concern, the lining’s mechanical properties and actual service conditions need to be checked.

For high-purity quartz and silica powder, the best lining is not simply the hardest one. It is the one that provides sufficient wear resistance while fitting the purity requirements of the final product.
